UC Series Insert Ball Bearings(with Eccentric Locking Collar)
Classification :
PRODUCT DETAILS
Keywords: Shandong Guanxian Monten Bearing Co., Ltd.
Easy mounting: the bearing unit design makes the mounting process more convenient.
Compact structure: compact design saves space.
High load carrying capacity: with high dynamic and static basic load ratings (Cr and Cor).
Wide range of application scenarios: Suitable for a wide range of machinery and equipment, such as machine tools, automation equipment, etc.

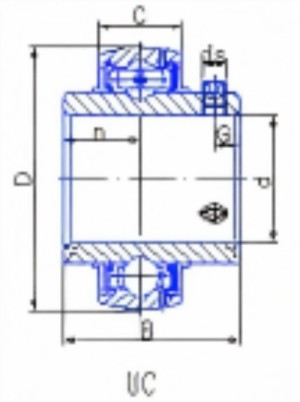

| Model | d | D | B | C | n | G | ds |
| UC201 | 12 | 47 | 31 | 16 | 12.7 | 4.8 | M6×0.75 |
| UC201-8 | 12.7 | 1/4-28 | |||||
| UC202 | 15 | M6×0.75 | |||||
| UC202-9 | 14.288 | 1/4-28 | |||||
| UC202-10 | 15.875 | 1/4-28 | |||||
| UC203 | 17 | M6×0.75 | |||||
| UC204 | 20 | M6×0.75 | |||||
| UC204-12 | 19.05 | 1/4-28 | |||||
| UC204-13 | 20.638 | 1/4-28 | |||||
| UC205 | 25 | 52 | 34 | 17 | 14.3 | 5 | M6×0.75 |
| UC205-14 | 22.225 | 1/4-28 | |||||
| UC205-15 | 23.813 | 1/4-28 | |||||
| UC205-16 | 25.4 | 1/4-28 | |||||
| UC206 | 30 | 62 | 38.1 | 19 | 15.9 | 5 | M6×0.75 |
| UC206-17 | 26.988 | 1/4-28 | |||||
| UC206-18 | 28.575 | 1/4-28 | |||||
| UC206-19 | 30.163 | 1/4-28 | |||||
| UC206-20 | 31.75 | 1/4-28 | |||||
| UC207 | 35 | 72 | 42.9 | 20 | 17.5 | 6.5 | M8×1 |
| UC207-20 | 31.75 | 5/16-24 | |||||
| UC207-21 | 33.338 | 5/16-24 | |||||
| UC207-22 | 34.925 | 5/16-24 | |||||
| UC207-23 | 36.513 | 5/16-24 | |||||
| UC208 | 40 | 80 | 49.2 | 21 | 19 | 8 | M8×1 |
| UC208-24 | 38.1 | 5/16-24 | |||||
| UC208-25 | 39.688 | 5/16-24 | |||||
| UC209 | 45 | 85 | 49.2 | 22 | 19 | 8 | M8×1 |
| UC209-26 | 41.275 | 5/16-24 | |||||
| UC209-27 | 42.863 | 5/16-24 | |||||
| UC209-28 | 44.45 | 5/16-24 | |||||
| UC210 | 50 | 90 | 51.6 | 23 | 19 | 9.5 | M10×1.25 |
| UC210-29 | 46.038 | 3/8-24 | |||||
| UC210-30 | 47.625 | 3/8-24 | |||||
| UC210-31 | 49.213 | 3/8-24 | |||||
| UC210-32 | 50.8 | 3/8-24 | |||||
| UC211 | 55 | 100 | 55.6 | 25 | 22.2 | 10 | M10×1.25 |
| UC211-32 | 50.8 | 3/8-24 | |||||
| UC211-33 | 52.388 | 3/8-24 | |||||
| UC211-34 | 53.975 | 3/8-24 | |||||
| UC211-35 | 55.563 | 3/8-24 | |||||
| UC212 | 60 | 110 | 65.1 | 27 | 25.4 | 10 | M10×1.25 |
| UC212-36 | 57.15 | 3/8-24 | |||||
| UC212-37 | 58.738 | 3/8-24 | |||||
| UC212-38 | 60.325 | 3/8-24 | |||||
| UC212-39 | 61.913 | 3/8-24 | |||||
| UC213 | 65 | 120 | 65.1 | 28 | 25.4 | 12 | M10×1.25 |
| UC213-40 | 63.5 | 3/8-24 | |||||
| UC213-41 | 65.088 | 3/8-24 | |||||
| UC214 | 70 | 125 | 74.6 | 29 | 30.2 | 12 | M12×1.5 |
| UC214-42 | 66.675 | 7/16-20 | |||||
| UC214-43 | 68.263 | 7/16-20 | |||||
| UC214-44 | 69.85 | 7/16-20 | |||||
| UC215 | 75 | 130 | 77.8 | 30 | 33.3 | 12 | M12×1.5 |
| UC215-45 | 71.438 | 7/16-20 | |||||
| UC215-46 | 73.025 | 7/16-20 | |||||
| UC215-47 | 74.613 | 7/16-20 | |||||
| UC215-48 | 76.2 | 7/16-20 |
Product Introduction
UC series bearings are a class of external spherical ball bearings, widely used in textile machinery, ceramic machinery and other manufacturing industries.UC series bearings mainly include UC200 series (light series) and UC300 series (heavy series), as well as the deformed products UB (SB) 200 series.
The choice of which series to use mainly depends on the requirements of the use of the environment, if the environment is less vibration, the general choice of UC200 series; on the contrary, the choice of UC300 series.
Cylindrical Outer Race with Locking Collar, Light Duty, Pre Lubricated with Grease
