UC210 L2 Insert Bearings (with Eccentric Locking Collar)
Classification :
PRODUCT DETAILS
Keywords: Shandong Guanxian Monten Bearing Co., Ltd.
The different locking methods enable quick and easy mounting of insert bearings onto the shaft
The spherically shaped outside surface helps accommodate initial misalignment by tilting inside the housing
The different sealing solutions available provide a long service life for a wide variety of applications with high contamination levels

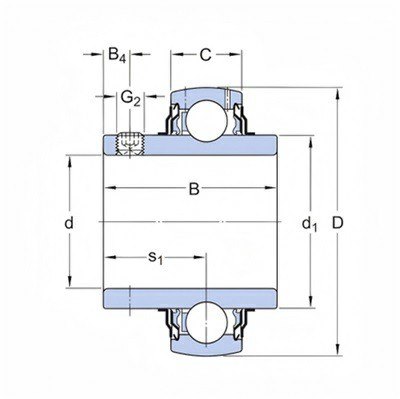

| Shaft Diameter (d) | 50 mm |
| Outer Diameter (D) | 90 mm |
| Width of Inner Ring (B) | 51.59 mm |
| Width of Outer Ring (C) | 22 mm |
| Outside Diameter of Inner Ring (d1) | 62.84 mm |
| Distance from Face to Thread Center (B4) | 10 mm |
| Distance from Locking Device Side Face to Raceway Center (s1) | 32.54 mm |
| Set-Screw (G2) | M10 x 0.15 |
| Basic Dynamic Load Rating | 39.2 kN |
| Basic Static Load Rating | 22.7 kN |
| Speed Limit | 3,450 r/min |
| Weight | ~0.76 kg |
Product Overview
Insert bearings are based on sealed deep groove ball bearings in the 62 and 63 series, but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft.
UC Insert Bearings have increased shaft support, super-finished raceways, grade 10 balls, and an anti-backout nylon patch set-screw. They are factory pre-lubricated and are relubricatable. The set-screw mounting feature is ideal for reversing load applications. UC210 NRB, UC210 TR, UC210 FAG
NRB manufactures Insert Bearings of UC (~ GYE and GY), UEL (~ GE), and AEL (~ GRAE and RAE) types in metric (mm) as well as imperial (inch) sizes.
Cylindrical Outer Race with Locking Collar, Light Duty, Pre Lubricated with Grease
