UEL Series Insert Bearings (with Eccentric Locking Collar)

UEL Series Insert Bearings (with Eccentric Locking Collar)

Insert bearings are based on sealed deep groove ball bearings in the 62 and 63 series

Classification :

Armored Type

WhatsApp : +8615314156859

E-mail : jack@odqbearing.com

PRODUCT DETAILS

Keywords: Shandong Guanxian Monten Bearing Co., Ltd.

Insert bearings are based on sealed deep groove ball bearings in the 62 and 63 series, but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft.

UEL Insert Bearings are designed especially for extremely dirty or wet conditions. These bearingsfeature R seals with flared lips that firmly contact the ground O.D. of the inner ring to provide a positive seal against dustdirt, and other contaminants while effectively retaining the lubricant. The extra-wide design provides additional shaftsupport and extra-large grease capacity.

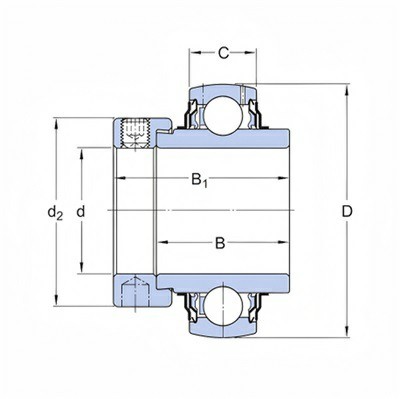

Bearing Type		Dimensions(mm)											weight (kg)	Rated load(KN)		Limiting speed (r/min)	Eccentricity code
New model	old model	d	D	B	B1	C	S	D1	B2	G	h	ds	weight (kg)	dynamic Cr	Static Cot	Limiting speed (r/min)	Eccentricity code
UEL205	390505	25	52	34.9	44.4	17	17.5	38.1	13.5	4.8	4.5	M6x1.0	0.28	10.78	6.98	3400	E205
UEL206	390506	30	62	36.5	48.4	19	183	44.5	15.9	6.0	5.1	M8x1.0	0.40	14.97	10.04	2800	E206
UE1207	390507	35	72	37.6	51.5	20	18.8	55.6	17.5	6.8	58	M8x1.0	0.61	19.75	13.67	2400	E207
UEL208	390508	40	80	42.8	56.3	21	21.4	60.3	18.3	6.8	62	M8x1.0	0.72	22.71	15.94	2200	E208
UEL209	390509	45	85	42.8	56.3	22	21.4	63.5	18.3	6.8	6.5	MB8x1.0	0.81	24.6	17.71	1900	E209
UEL210	390510	50	90	49.2	62.7	24	24.6	69.9	183	7.0	6.5	M10x1.0	0.98	26.98	19.84	1800	E210
UEL211	390511	55	100	55.5	71.4	25	27.8	76.2	20.7	7.0	7.3	M10x1.0	1.30	33.37	25.11	1600	E211
UEL212	390512	60	110	61.9	77.8	27	31.0	84.2	22.3	8.0	7.7	M10kx1.0	1.78	36.74	27.97	1500	E212
UEL213	390513	65	120	69.2	85.7	28	34.1	86.0	23.5	8.5	8.3	MI2x1.25	248	44.01	34.18	1400	E213
UEL214	390514	70	125	69.2	85.7	29	34.1	90.0	23.5	8.5	8.7	M12x1.25	250	46.79	37.59	1300	E214
UEL215	390515	75	130	76.6	92	30	37.3	20	23.5	8.5	9.2	M12x1.25	2.86	50.85	41.26	1200	E215
UEL216	390516	80	140	70.0	92	33	33.3	110	30.0	11.0	9.6	MI2x1.25	3.30	55.04	45.09	1100	E216
UEL218	390518	90	160	80	100	37	39.7.	115	30.0	12	11.1	M12x1.25	4.80	73.83	60.76	950	E218,
UEL306	390606	30	72	36.5	50.0	23	17.5	49	17.5	6.5	67	M8x1.0	0.69	20.77	14.17	2600	E306
UEL308	390608	40	90	41.5	57.1	27	19.8	63.5	20.6	8.1	82	M10x1.0	1.08	31.35	22.38	2000	E308
UEL310	390610	50	110	49.4	66.6	32	24.6	76	22.2	9.0	10	M12x1.25	1.86	47.58	35.71	1700	E310
UEL.311	390611	55	120	55.8	73.0	34	27.8	82	22.2.	9.0	10.7	M12x1.25	234	55.05	41.91	1400	E311

Cylindrical Outer Race with Locking Collar, Light Duty, Pre Lubricated with Grease

QUALITY DETECTION

FACTORY WORKSHOP

factory

APPLICATION FIELD

FAQ

Once the products received by customer were found not comply with the products or contract demands, what will you do?

A: We will compensate the customer for all the loss without any hesitation.

Do you provide samples Is it free or extra?

A: Yes, we could offer free samples.

What certifications do your products have?

A: We have ISO 9001, SGS, EWC and other certifications.

What kind of payment terms would you accept?

A: We always do T/T.30% T/T as deposit,70% T/T as balance.

What is the delivery time?

A: 10-15 days

What is your MOQ?

A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
