PRODUCT DETAILS

Keywords: Shandong Guanxian Monten Bearing Co., Ltd.

Hexagonal bearings are widely used in mechanical equipment, automobiles, aerospace and other industries, such as motors, automobile engines, aircraft landing gear, etc.

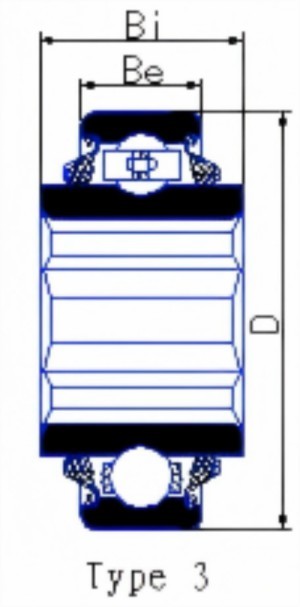

Model	Style	A	C	D	Be	Bi	Load Rating KN
Bearing No.	Type	Bore		Outer Dia.	OD.Width	ID.Width	Cr	Cor
204KRR2	1	17.65	20.24	47	14	20.96	12.84	6.65
204KRRB2	2	17.65	20.24	47	14	20.96	12.84	6.65
204KPP2	3	17.65	20.24	47	14	20.96	12.84	6.65
204KPPB2	4	17.65	20.24	47	14	20.96	12.84	6.65
204KRR2-NR	5	17.65	20.24	47	14	20.96	12.84	6.65
204KRRB AH01	1	17	19.59	47	14	17.7	12.84	6.65
88120A	1	17.65	20.24	47	13.98	20.8	12.84	6.65
CS205-14H	1	22.25	25.7	52	15	17	14.02	7.88
205KRR2	1	22.25	25.7	52	15	25.4	14.02	7.88
205KRRB2	2	22.25	25.7	52	15	25.4	14.02	7.88
205KPP2	3	22.25	25.7	52	15	25.4	14.02	7.88
205KPPB2	4	22.25	25.7	52	15	25.4	14.02	7.88
205KRR2-NR	5	22.25	25.7	52	15	25.4	14.02	7.88
205KRR2-NR-667	5	22.25	25.7	52	15	16.942	14.02	7.88
205PPB13	4	22.25	25.7	52	15	25.4	14.02	7.88
205KRR AH02	2	22.25	25.7	52	15	18.7	14.02	7.88
AA22098	1	22.25	25.7	52	16	22.8	14.02	7.88
AA22098	2	22.25	25.7	52	16	22.8	14.02	7.88
206KRR6	1	25.43	29.26	62	16	24	19.46	11.31
206KRRB6	2	25.43	29.26	62	16	24	19.46	11.31
206KPP6	3	25.43	29.26	62	16	24	19.46	11.31
206KPPB6	4	25.43	29.26	62	16	24	19.46	11.31
206KPPB3	4	25.43	29.26	62	16	24	19.46	11.31
207KRRB17	2	31.775	36.65	72	17	25	25.67	15.3
207KRR17	1	31.775	36.65	72	17	25	25.67	15.3
207KPPB9	2	28.6	32.97	72	17	37.69	25.67	15.3
207KRRB12	2	28.6	32.97	72	17	25	25.67	15.3
207KPP3	3	31.775	36.65	72	17	37.7	25.67	15.3
207KPPB3	4	31.775	36.65	72	17	37.7	25.67	15.3
207KPPB3-AH05	4	36.9	32	72	17	38	25.67	15.3
W208PP16	4	31.775	36.65	80	21	36.525	29.52	18.14
W208PPB16	3	31.775	36.65	80	21	36.525	29.52	18.14
W208PP21	4	31.775	36.65	80	18	36.525	29.52	18.14
W208PPB21	3	31.775	36.65	80	18	36.525	29.52	18.14
209KRRB2	2	38.125	43.942	85	19	30	31.67	20.68

Product Overview

‌High load-bearing capacity‌: Due to its hexagonal shape, the hexagonal bearing can withstand greater loads and torques and has a higher load-bearing capacity.

‌High precision and long life‌: The cage structure is adopted to effectively control the gap between the balls, improving the precision and life of the bearing.

‌Easy to install and maintain‌: Simple structure, easy to install and maintain‌

High load-bearing capacity‌: Due to its hexagonal shape

QUALITY DETECTION

FACTORY WORKSHOP

factory

APPLICATION FIELD

FAQ

Once the products received by customer were found not comply with the products or contract demands, what will you do?

A: We will compensate the customer for all the loss without any hesitation.

Do you provide samples Is it free or extra?

A: Yes, we could offer free samples.

What certifications do your products have?

A: We have ISO 9001, SGS, EWC and other certifications.

What kind of payment terms would you accept?

A: We always do T/T.30% T/T as deposit,70% T/T as balance.

What is the delivery time?

A: 10-15 days

What is your MOQ?

A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
