PRODUCT DETAILS

Keywords: Shandong Guanxian Monten Bearing Co., Ltd.

Weight: 0.62 LB
Part Number: G206KPP4 Fafnir
Technical description (KPP4): K=Conrad, Non-Filling slot Type. Pp=Two Tri-Ply Seals. 4=Bearing

Type: Bearings for Housings (insert Ball Bearing Units)Inner Dimension d (mm): 30,00
Original Equipment Manufacture(OEM NO.):G206KPP4
Seals Type: 3T -Tripple Seal
Type of lubrication: Standard class lubrication

Insert Bearing Units G206KPp4, 0.281 kg Bearing mass, (29.26*62*24mm), 29.26 mm d (Bore.diameter of the inner ring), 62mm D (Outside: diameter of the outer cylindrical surface of the outerring), 24 mm B (Width: nominal width of the bearing), 21600 N radial dynamic load capacity (Dyn.Cr),10000 N radial static load capacity (Stat. Cor),

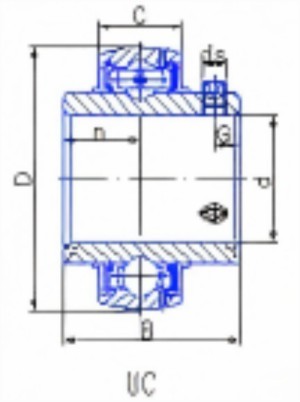

Moel	Style	A	C	D	Be	Bi	Load Rating KN
Bearing No.	Type	Bore		Outer Dia.	OD.Width	ID.Width	Cr	Cor
204KRR2	1	17.65	20.24	47	14	20.96	12.84	6.65
204KRRB2	2	17.65	20.24	47	14	20.96	12.84	6.65
204KPP2	3	17.65	20.24	47	14	20.96	12.84	6.65
204KPPB2	4	17.65	20.24	47	14	20.96	12.84	6.65
204KRR2-NR	5	17.65	20.24	47	14	20.96	12.84	6.65
204KRRB AH01	1	17	19.59	47	14	17.7	12.84	6.65
88120A	1	17.65	20.24	47	13.98	20.8	12.84	6.65
CS205-14H	1	22.25	25.7	52	15	17	14.02	7.88
205KRR2	1	22.25	25.7	52	15	25.4	14.02	7.88
205KRRB2	2	22.25	25.7	52	15	25.4	14.02	7.88
205KPP2	3	22.25	25.7	52	15	25.4	14.02	7.88
205KPPB2	4	22.25	25.7	52	15	25.4	14.02	7.88
205KRR2-NR	5	22.25	25.7	52	15	25.4	14.02	7.88
205KRR2-NR-667	5	22.25	25.7	52	15	16.942	14.02	7.88
205PPB13	4	22.25	25.7	52	15	25.4	14.02	7.88
205KRR AH02	2	22.25	25.7	52	15	18.7	14.02	7.88
AA22098	1	22.25	25.7	52	16	22.8	14.02	7.88
AA22098	2	22.25	25.7	52	16	22.8	14.02	7.88
206KRR6	1	25.43	29.26	62	16	24	19.46	11.31
206KRRB6	2	25.43	29.26	62	16	24	19.46	11.31
206KPP6	3	25.43	29.26	62	16	24	19.46	11.31
206KPPB6	4	25.43	29.26	62	16	24	19.46	11.31
206KPPB3	4	25.43	29.26	62	16	24	19.46	11.31
207KRRB17	2	31.775	36.65	72	17	25	25.67	15.3
207KRR17	1	31.775	36.65	72	17	25	25.67	15.3
207KPPB9	2	28.6	32.97	72	17	37.69	25.67	15.3
207KRRB12	2	28.6	32.97	72	17	25	25.67	15.3
207KPP3	3	31.775	36.65	72	17	37.7	25.67	15.3
207KPPB3	4	31.775	36.65	72	17	37.7	25.67	15.3
207KPPB3-AH05	4	36.9	32	72	17	38	25.67	15.3
W208PP16	4	31.775	36.65	80	21	36.525	29.52	18.14
W208PPB16	3	31.775	36.65	80	21	36.525	29.52	18.14
W208PP21	4	31.775	36.65	80	18	36.525	29.52	18.14
W208PPB21	3	31.775	36.65	80	18	36.525	29.52	18.14
209KRRB2	2	38.125	43.942	85	19	30	31.67	20.68

High load-bearing capacity‌: Due to its hexagonal shape

QUALITY DETECTION

FACTORY WORKSHOP

factory

APPLICATION FIELD

FAQ

Once the products received by customer were found not comply with the products or contract demands, what will you do?

A: We will compensate the customer for all the loss without any hesitation.

Do you provide samples Is it free or extra?

A: Yes, we could offer free samples.

What certifications do your products have?

A: We have ISO 9001, SGS, EWC and other certifications.

What kind of payment terms would you accept?

A: We always do T/T.30% T/T as deposit,70% T/T as balance.

What is the delivery time?

A: 10-15 days

What is your MOQ?

A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
