SB Series Insert Ball Bearings
Classification :
PRODUCT DETAILS
Keywords: Shandong Guanxian Monten Bearing Co., Ltd.

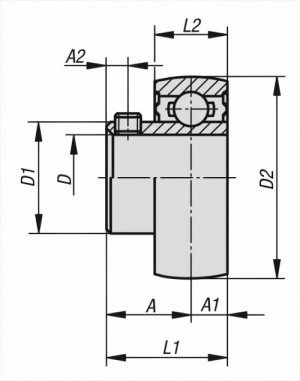

The SB type bearing is an oil free grease-sealed deep-groove ball bearing with an outer ring that has a spherical surface on the outer diameter and a wide inner ring that has cylindrical holes with set screws included.
A lightweight bearing suitable for use with light to normal loads, that can be easily and securely attached to the shaft using the 2 inner ring set screws with a 120° interval.
| 型 号 | d | D | B | C | n | G | ds |
| SB201 | 12 | 40 | 22 | 12 | 6 | 4.8 | M6×0.75 |
| SB201-8 | 12.7 | 1/4-28 | |||||
| SB202 | 15 | M6×0.75 | |||||
| SB202-10 | 15.875 | 1/4-28 | |||||
| SB203 | 17 | M6×0.75 | |||||
| SB204 | 20 | 47 | 25 | 14 | 7 | 5.2 | M6×0.75 |
| SB204-12 | 19.05 | 1/4-28 | |||||
| SB204-13 | 20.638 | 1/4-28 | |||||
| SB205 | 25 | 52 | 27 | 15 | 7.5 | 5.5 | M6×0.75 |
| SB205-14 | 22.225 | 1/4-28 | |||||
| SB205-15 | 23.813 | 1/4-28 | |||||
| SB205-16 | 25.4 | 1/4-28 | |||||
| SB206 | 30 | 62 | 30 | 16 | 8 | 5.5 | M6×0.75 |
| SB206-17 | 26.988 | 1/4-28 | |||||
| SB206-18 | 28.575 | 1/4-28 | |||||
| SB206-19 | 30.163 | 1/4-28 | |||||
| SB206-20 | 31.75 | 1/4-28 | |||||
| SB207 | 35 | 72 | 32 | 17 | 8.5 | 7 | M8×1 |
| SB207-20 | 31.75 | 5/16-24 | |||||
| SB207-21 | 33.338 | 5/16-24 | |||||
| SB207-22 | 34.925 | 5/16-24 | |||||
| SB207-23 | 36.513 | 5/16-24 | |||||
| SB208 | 40 | 80 | 34 | 18 | 9 | 7 | M8×1 |
| SB208-24 | 38.1 | 5/16-24 | |||||
| SB208-25 | 39.688 | 5/16-24 | |||||
| SB209 | 45 | 85 | 41.2 | 19 | 9.5 | 8.2 | M8×1 |
| SB209-26 | 41.275 | 5/16-24 | |||||
| SB209-27 | 42.863 | 5/16-24 | |||||
| SB209-28 | 44.45 | 5/16-24 | |||||
| SB210 | 50 | 90 | 43.5 | 20 | 10 | 9.2 | M8×1 |
| SB210-29 | 46.038 | 3/8-24 | |||||
| SB210-30 | 47.625 | 3/8-24 | |||||
| SB210-31 | 49.213 | 3/8-24 | |||||
| SB210-32 | 50.8 | 3/8-24 | |||||
| SB211 | 55 | 100 | 45.3 | 21 | 10.5 | 9.8 | M10×1.25 |
| SB211-32 | 50.8 | 3/8-24 | |||||
| SB211-33 | 52.388 | 3/8-24 | |||||
| SB211-34 | 53.975 | 3/8-24 | |||||
| SB211-35 | 55.563 | 3/8-24 | |||||
| SB212 | 60 | 110 | 53.7 | 22 | 14.9 | 9.8 | M10×1.25 |
| SB212-36 | 57.15 | 3/8-24 | |||||
| SB212-37 | 58.738 | 3/8-24 | |||||
| SB212-38 | 60.325 | 3/8-24 | |||||
| SB212-39 | 61.913 | 3/8-24 |
SA Series Insert bearing is a high quality spherical plain bearing,
