PRODUCT DETAILS

Keywords: Shandong Guanxian Monten Bearing Co., Ltd.

SER insert bearings are spherical outer surface bearings, usually with a retaining ring and a set screw, and are mainly used in applications requiring high load capacity and wide range of applications.‌

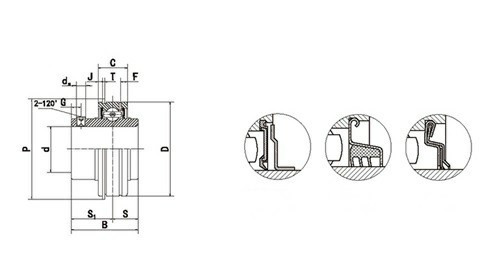

Model	d	D	B	C	n	Dy	S	G	ds
SER201	12	47	31	16	12.7	52.7	2.46	4.8	M6×0.75
SER201-8	12.7								2001-4-28
SER202	15								M6×0.75
SER202-9	14.288								2001-4-28
SER202-10	15.875								2001-4-28
SER203	17								M6×0.75
SER204	20								M6×0.75
SER204-12	19.05								2001-4-28
SER204-13	20.638								2001-4-28
SER205	25	52	34.9	19	13.1	57.9	2.46	5	M6×0.75
SER205-14	22.225								2001-4-28
SER205-15	23.813								2001-4-28
SER205-16	25.4								2001-4-28
SER206	30	62	38.1	22	15.9	67.7	3.28	5	M6×0.75
SER206-17	26.988								2001-4-28
SER206-18	28.575								2001-4-28
SER206-19	30.163								2001-4-28
SER206-20	31.75								2001-4-28
SER207	35	72	42.9	24	17.5	78.6	3.28	6.5	M8×1
SER207-20	31.75								5/16-24
SER207-21	33.338								5/16-24
SER207-22	34.925								5/16-24
SER207-23	36.513								5/16-24
SER208	40	80	49.2	28	19	86.6	3.28	8	M8×1
SER208-24	38.1								5/16-24
SER208-25	39.688								5/16-24
SER209	45	85	49.2	28	19	91.6	3.28	8	M8×1
SER209-26	41.275								5/16-24
SER209-27	42.863								5/16-24
SER209-28	44.45								5/16-24
SER210	50	90	51.6	28	19	96.5	3.28	9.5	M10×1.25
SER210-29	46.038								2003-8-24
SER210-30	47.625								2003-8-24
SER210-31	49.213								2003-8-24
SER210-32	50.8								2003-8-24
SER211	55	100	55.6	30	22.2	106.5	3.28	10	M10×1.25
SER211-32	50.8								2003-8-24
SER211-33	52.388								2003-8-24
SER211-34	53.975								2003-8-24
SER211-35	55.563								2003-8-24
SER212	60	110	65.1	31.8	25.4	116.6	3.28	10	M10×1.25
SER212-36	57.15								2003-8-24
SER212-37	58.738								2003-8-24
SER212-38	60.325								2003-8-24
SER212-39	61.913								2003-8-24
SER213	65	120	65.1	35	25.4	129.7	4.06	12	M10×1.25
SER213-40	63.5								2003-8-24
SER213-41	65.088								2003-8-24
SER214	70	125	69.9	35	27	134.7	4.06	12	M12×1.5
SER214-42	66.675								7/16-20
SER214-43	68.263								7/16-20
SER214-44	69.85								7/16-20
SER215	75	130	77.8	38	33.3	139.7	4.06	12	M12×1.5
SER215-45	71.438								7/16-20
SER215-46	73.025								7/16-20
SER215-47	74.613								7/16-20
SER215-48	76.2								7/16-20

SA Series Insert bearing is a high quality spherical plain bearing,

QUALITY DETECTION

FACTORY WORKSHOP

factory

APPLICATION FIELD

FAQ

Once the products received by customer were found not comply with the products or contract demands, what will you do?

A: We will compensate the customer for all the loss without any hesitation.

Do you provide samples Is it free or extra?

A: Yes, we could offer free samples.

What certifications do your products have?

A: We have ISO 9001, SGS, EWC and other certifications.

What kind of payment terms would you accept?

A: We always do T/T.30% T/T as deposit,70% T/T as balance.

What is the delivery time?

A: 10-15 days

What is your MOQ?

A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
