UCF207 series bearings are usually made of high-strength steel, with high load capacity and long service life. Its reasonable design can reduce material costs while ensuring strength, and is suitable for various high-load working environments‌
possible.

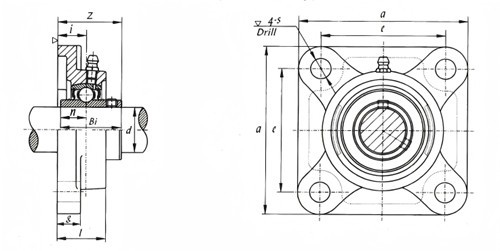

Item #	Shaft Diameter d	Dimension L	Dimension J	Dimension A2	Dimension A1
UCF-201	12 mm	N/A	N/A	N/A	N/A
UCF-201-8	1/2 in	N/A	N/A	N/A	N/A
UCF-202-9	9/16 in	76 mm	54 mm	17 mm	11 mm
UCF-202	15 mm	76 mm	54 mm	17 mm	11 mm
UCF-202-10	5/8 in	76 mm	54 mm	17 mm	11 mm
UCF-203	17 mm	N/A	N/A	N/A	N/A
UCF-203-11	11/16 in	N/A	N/A	N/A	N/A
UCF-204-12	3/4 in	86 mm	63.5 mm	19 mm	11 mm
UCF-204	20 mm	86 mm	63.5 mm	19 mm	11 mm
UCF-205-14	7/8 in	95 mm	70 mm	19 mm	13 mm
UCF-205-15	15/16 in	95 mm	70 mm	19 mm	13 mm
UCF-205	25 mm	95 mm	70 mm	19 mm	13 mm
UCF-205-16	1 in	95 mm	70 mm	19 mm	13 mm
UCF-206-18	1 1/2 in	108 mm	82.5 mm	20 mm	13 mm
UCF-206	30 mm	108 mm	82.5 mm	20 mm	13 mm
UCF-206-19	1 3/16 in	108 mm	82.5 mm	20 mm	13 mm
UCF-206-20	1 1/4 in	108 mm	82.5 mm	20 mm	13 mm
UCF-207-20	1 1/4 in	117 mm	92 mm	21 mm	15 mm
UCF-207-21	1 5/16 in	117 mm	92 mm	21 mm	15 mm
UCF-207-22	1 3/8 in	117 mm	92 mm	21 mm	15 mm
UCF-207	35 mm	117 mm	92 mm	21 mm	15 mm
UCF-207-23	1 7/16 in	117 mm	92 mm	21 mm	15 mm
UCF-208-24	1 1/2 in	130 mm	101.5 mm	24 mm	15 mm
UCF-208-25	1 9/16 in	130 mm	101.5 mm	24 mm	15 mm
UCF-208	40 mm	130 mm	101.5 mm	24 mm	15 mm
UCF-209-26	1 5/8 in	137 mm	105 mm	24 mm	16 mm
UCF-209-27	1 11/16 in	137 mm	105 mm	24 mm	16 mm
UCF-209-28	1 3/4 in	137 mm	105 mm	24 mm	16 mm
UCF-209	45 mm	137 mm	105 mm	24 mm	16 mm
UCF-210-30	1 7/8 in	143 mm	111 mm	28 mm	16 mm
UCF-210-31	1 15/16 in	143 mm	111 mm	28 mm	16 mm
UCF-210	50 mm	143 mm	111 mm	28 mm	16 mm
UCF-210-32	2 in	143 mm	111 mm	28 mm	16 mm
UCF-211-32	2 in	162 mm	130 mm	31 mm	18 mm
UCF-211-34	2 1/8 in	162 mm	130 mm	31 mm	18 mm
UCF-211	55 mm	162 mm	130 mm	31 mm	18 mm
UCF-211-35	2 3/16 in	162 mm	130 mm	31 mm	18 mm
UCF-212-36	2 1/4 in	175 mm	143 mm	34 mm	18 mm
UCF-212-37	2 5/16 in	175 mm	143 mm	34 mm	18 mm
UCF-212	60 mm	175 mm	143 mm	34 mm	18 mm
UCF-212-38	2 3/8 in	175 mm	143 mm	34 mm	18 mm
UCF-212-39	2 7/16 in	175 mm	143 mm	34 mm	18 mm
UCF-213-40	2 1/2 in	187 mm	149.5 mm	34 mm	20 mm
UCF-213	65 mm	187 mm	149.5 mm	34 mm	20 mm
UCF-213-43	2 11/16 in	187 mm	149.5 mm	34 mm	20 mm
UCF-214-44	2 3/4 in	193 mm	152 mm	35 mm	24 mm
UCF-214	70 mm	193 mm	152 mm	35 mm	24 mm
UCF-215-44	2 3/4 in	200 mm	159 mm	35 mm	24 mm
UCF-215-47	2 15/16 in	200 mm	159 mm	35 mm	24 mm
UCF-215	75 mm	200 mm	159 mm	35 mm	24 mm
UCF-215-48	3 in	200 mm	159 mm	35 mm	24 mm
UCF-216	80 mm	208 mm	165 mm	35 mm	24 mm
UCF-216-52	3 1/4 in	208 mm	165 mm	35 mm	24 mm
UCF-217-52	3 1/4 in	220 mm	175 mm	36 mm	26 mm
UCF-217	85 mm	220 mm	175 mm	36 mm	26 mm
UCF-218-56	3 1/2 in	235 mm	187 mm	42 mm	26 mm
UCF-218	90 mm	235 mm	187 mm	42 mm	26 mm

Product Overview

UCF207 series bearings‌ are a type of seated outer spherical ball bearings, which are mainly used in various mechanical equipment to provide stable support and rotation functions.

Application

UCF207 series bearings are widely used in various mechanical equipment and industrial applications, including but not limited to:
‌Insulating glass production lines‌, engineering and engineering design‌, inkjet printers‌, condiment processing equipment‌, heat exchangers, sewage treatment equipment‌, variable frequency pumps‌, electric welders‌, household sewing machines‌, workbenches‌, sorting screens‌, electroplating equipment‌, glazing machines‌, rubber molding machines‌, pill making machines‌, plastic calenders‌, agricultural machinery accessories‌, granulation and drying equipment‌, etc.

It belongs to the deep groove ball bearing, inside the rolling body for the steel ball
