PRODUCT DETAILS

Keywords: Shandong Guanxian Monten Bearing Co., Ltd.

Material: Housing from greycast iron.
Rolling bearing from bearing steel.
With 2 mounting holes, one of them slotted.
The rolling bearing can be swiveled when mounting to compensate
shaft misalignement. The shaft will get fastened with
2 setscrews. Lubricated for life at normal operating conditions.
Re-lubricating is possible. Delivery with grease nipple.

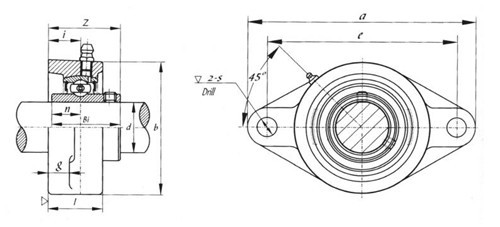

Bearing Unit No.	Shaft Dia(mm)		Dimensions（mm）											Bolt Dimensions		Bearing No.	Housing No.	Weight(kg)
Bearing Unit No.	in	mm	a	e	i	g	l	s	b	z	c	Bi	n	mm	in	Bearing No.	Housing No.	Weight(kg)
UCFA201		12	98	78	15	11	25.5	10	60	33.3	50	31	12.7	M8	5.16	UCFA201	FA201	0.47
UCFA201-8	1/2	12	98	78	15	11	25.5	10	60	33.3	50	31	12.7	M8	5.16	UCFA201-8	FA201	0.47
UCFA202		15	98	78	15	11	25.5	10	60	33.3	50	31	12.7	M8	5.16	UCFA202	FA202	0.47
UCFA202-10	5/8	15	98	78	15	11	25.5	10	60	33.3	50	31	12.7	M8	5.16	UCFA202-10	FA202	0.47
UCFA203		17	98	78	15	11	25.5	10	60	33.3	50	31	12.7	M8	5.16	UCFA203	FA203	0.47
UCFA203-11	11/16	17	98	78	15	11	25.5	10	60	33.3	50	31	12.7	M8	5.16	UCFA203-11	FA203	0.47
UCFA204-12	3/4	20	98	78	15	11	25.5	10	60	33.3	50	31	12.7	M8	5.16	UCFA204-12	FA204	0.47
UCFA204		20	98	78	15	11	25.5	10	60	33.3	50	31	12.7	M8	5.16	UCFA204	FA204	0.47
UCFA205-14	7/8	25	124	98	16	13	27	12	70	35.7	65	34.1	14.3	M10	3.8	UCFA205-14	FA205	0.68
UCFA205-15	15/16	25	124	98	16	13	27	12	70	35.7	65	34.1	14.3	M10	3.8	UCFA205-15	FA205	0.68
UCFA205		25	124	98	16	13	27	12	70	35.7	65	34.1	14.3	M10	3.8	UCFA205	FA205	0.68
UCFA205-16	1	25	124	98	16	13	27	12	70	35.7	65	34.1	14.3	M10	3.8	UCFA205-16	FA205	0.68
UCFA206-18	1 1/8	30	141	117	18	13	31	12	83	40.2	72	38.1	15.9	M10	3.8	UCFA206-18	FA206	1
UCFA206		30	141	117	18	13	31	12	83	40.2	72	38.1	15.9	M10	3.8	UCFA206	FA206	1
UCFA206-19	1 3/16	30	141	117	18	13	31	12	83	40.2	72	38.1	15.9	M10	3.8	UCFA206-19	FA206	1
UCFA206-20	1 1/4	30	141	117	18	13	31	12	83	40.2	72	38.1	15.9	M10	3月8日	UCFA206-20	FA206	1
UCFA207-20	1 1/4	35	155	130	19	14	34	14	96	44.4	82	42.9	17.5	M12	7. 16	UCFA207-20	FA207	1.4
UCFA207-21	1 5/16	35	155	130	19	14	34	14	96	44.4	82	42.9	17.5	M12	7. 16	UCFA207-21	FA207	1.4
UCFA207-22	1 3/8	35	155	130	19	14	34	14	96	44.4	82	42.9	17.5	M12	7. 16	UCFA207-22	FA207	1.4
UCFA207		35	155	130	19	14	34	14	96	44.4	82	42.9	17.5	M12	7. 16	UCFA207	FA207	1.4
UCFA207-23	1 7/16	35	155	130	19	14	34	14	96	44.4	82	42.9	17.5	M12	7. 16	UCFA207- 23	FA207	1.4
UCFA208-24	1 1/2	40	171	144	21	16	36	14	105	51. 2	87	49.2	19	M12	7. 16	UCFA208-24	FA208	1.7
UCFA208-25	1 9/16	40	171	144	21	16	36	14	105	51. 2	87	49.2	19	M12	7. 16	UCFA208-25	FA208	1.7
UCFA208		40	171	144	21	16	36	14	105	51. 2	87	49.2	19	M12	7. 16	UCFA208	FA208	1.7
UCFA209-26	1 5/8	45	179	148	22	16	38	16	111	52.2	90	49.2	19	M14	1.2	UCFA209-26	FA209	2.1
UCFA209-27	1 11/16	45	179	148	22	16	38	16	111	52.2	90	49.2	19	M14	1.2	UCFA209-27	FA209	2.1
UCFA209-28	1 3/4	45	179	148	22	16	38	16	111	52.2	90	49.2	19	M14	1.2	UCFA209-28	FA209	2.1
UCFA209		45	179	148	22	16	38	16	111	52.2	90	49.2	19	M14	1.2	UCFA209	FA209	2.1
UCFA210-30	1 7/8	50	189	157	22	16	40	16	116	54.6	94	51.6	19	M14	1.2	UCFA210-30	FA210	2.4
UCFA210-31	1 15/16	50	189	157	22	16	40	16	116	54.6	94	51.6	19	M14	1.2	UCFA210-31	FA210	2.4
UCFA210		50	189	157	22	16	40	16	116	54.6	94	51.6	19	M14	1.2	UCFA210	FA210	2.4
UCFA210-32	2	50	189	157	22	16	40	16	116	54.6	94	51.6	19	M14	1.2	UCFA210-32	FA210	2.4
UCFA211-32	2	55	216	184	25	16	43	16	133	58.4	104	55.6	22.2	M14	1.2	UCFA211-32	FA211	3.4
UCFA211-34	2 1/8	55	216	184	25	16	43	16	133	58.4	104	55.6	22.2	M14	1.2	UCFA211-34	FA211	3.4
UCFA211		55	216	184	25	16	43	16	133	58.4	104	55.6	22.2	M14	1.2	UCFA211	FA211	3.4
UCFA211-35	2 3/16	55	216	184	25	16	43	16	133	58.4	104	55.6	22.2	M14	1.2	UCFA211-35	FA211	3.4

It belongs to the deep groove ball bearing, inside the rolling body for the steel ball

QUALITY DETECTION

FACTORY WORKSHOP

factory

APPLICATION FIELD

FAQ

Once the products received by customer were found not comply with the products or contract demands, what will you do?

A: We will compensate the customer for all the loss without any hesitation.

Do you provide samples Is it free or extra?

A: Yes, we could offer free samples.

What certifications do your products have?

A: We have ISO 9001, SGS, EWC and other certifications.

What kind of payment terms would you accept?

A: We always do T/T.30% T/T as deposit,70% T/T as balance.

What is the delivery time?

A: 10-15 days

What is your MOQ?

A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
