Pillow block bearing flange type UCFC with centering hub

Pillow block bearing flange type UCFC with centering hub

Pillow block bearings consist of a sealed single-row ball bearing with a spherical outer ring which is mounted in a housing.

Classification :

Bearing Units

UCFC

WhatsApp : +8615314156859

E-mail : jack@odqbearing.com

PRODUCT DETAILS

Keywords: Shandong Guanxian Monten Bearing Co., Ltd.

Pillow block bearings consist of a sealed single-row ball bearing with a spherical outer ring which is mounted in a housing. Because of the spherical outer surface of the bearing, shaft misalignment can be compensated for. The bearings are manufactured with a plus tolerance. This results in transition or press fits when using shafts with h-tolerances. The shaft is secured by grub screws on the inner ring.

In normal applications, pillow block bearings are maintenance-free due to the lifetime lubrication. In difficult environmental conditions re-lubrication can be carried out over the grease nipple.

All housing dimensions are nominal dimensions for which the usual casting tolerances must be taken into consideration.

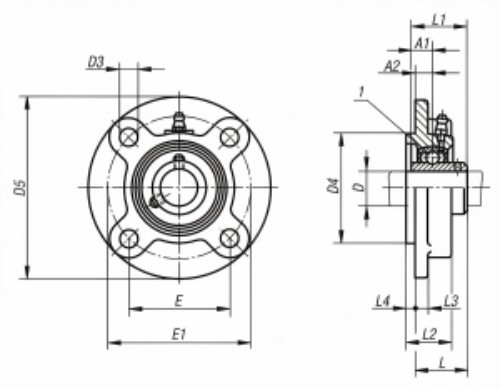

Item #	Shaft Diameter d	Dimension L	Dimension P	Dimension A2	Dimension A1	Dimension A
UCFC-201	12 mm	N/A	N/A	N/A	N/A	N/A
UCFC-201-8	1/2 in	N/A	N/A	N/A	N/A	N/A
UCFC-202-9	9/16 in	97 mm	75 mm	9 mm	19 mm	23 mm
UCFC-202	15 mm	97 mm	75 mm	9 mm	19 mm	23 mm
UCFC-202-10	5/8 in	97 mm	75 mm	9 mm	19 mm	23 mm
UCFC-203	17 mm	N/A	N/A	N/A	N/A	N/A
UCFC-203-11	11/16 in	N/A	N/A	N/A	N/A	N/A
UCFC-204-12	3/4 in	100 mm	78 mm	10 mm	20.5 mm	25.5 mm
UCFC-204	20 mm	100 mm	78 mm	10 mm	20.5 mm	25.5 mm
UCFC-205-14	7/8 in	115 mm	90 mm	10 mm	21 mm	27 mm
UCFC-205-15	15/16 in	115 mm	90 mm	10 mm	21 mm	27 mm
UCFC-205	25 mm	115 mm	90 mm	10 mm	21 mm	27 mm
UCFC-205-16	1 in	115 mm	90 mm	10 mm	21 mm	27 mm
UCFC-206-18	1 1/2 in	125 mm	100 mm	10 mm	23 mm	31 mm
UCFC-206	30 mm	125 mm	100 mm	10 mm	23 mm	31 mm
UCFC-206-19	1 3/16 in	125 mm	100 mm	10 mm	23 mm	31 mm
UCFC-206-20	1 1/4 in	125 mm	100 mm	10 mm	23 mm	31 mm
UCFC-207-20	1 1/4 in	135 mm	110 mm	11 mm	26 mm	34 mm
UCFC-207-21	1 5/16 in	135 mm	110 mm	11 mm	26 mm	34 mm
UCFC-207-22	1 3/8 in	135 mm	110 mm	11 mm	26 mm	34 mm
UCFC-207	35 mm	135 mm	110 mm	11 mm	26 mm	34 mm
UCFC-207-23	1 7/16 in	135 mm	110 mm	11 mm	26 mm	34 mm
UCFC-208-24	1 1/2 in	145 mm	120 mm	11 mm	26 mm	36 mm
UCFC-208-25	1 9/16 in	145 mm	120 mm	11 mm	26 mm	36 mm
UCFC-208	40 mm	145 mm	120 mm	11 mm	26 mm	36 mm
UCFC-209-26	1 5/8 in	160 mm	132 mm	10 mm	26 mm	38 mm
UCFC-209-27	1 11/16 in	160 mm	132 mm	10 mm	26 mm	38 mm
UCFC-209-28	1 3/4 in	160 mm	132 mm	10 mm	26 mm	38 mm
UCFC-209	45 mm	160 mm	132 mm	10 mm	26 mm	38 mm
UCFC-210-30	1 7/8 in	165 mm	138 mm	10 mm	28 mm	40 mm
UCFC-210-31	1 15/16 in	165 mm	138 mm	10 mm	28 mm	40 mm
UCFC-210	50 mm	165 mm	138 mm	10 mm	28 mm	40 mm
UCFC-210-32	2 in	165 mm	138 mm	10 mm	28 mm	40 mm
UCFC-211-32	2 in	185 mm	150 mm	13 mm	31 mm	43 mm
UCFC-211-34	2 1/8 in	185 mm	150 mm	13 mm	31 mm	43 mm
UCFC-211	55 mm	185 mm	150 mm	13 mm	31 mm	43 mm
UCFC-211-35	2 3/16 in	185 mm	150 mm	13 mm	31 mm	43 mm
UCFC-212-36	2 1/4 in	195 mm	160 mm	17 mm	36 mm	48 mm
UCFC-212-37	2 5/16 in	195 mm	160 mm	17 mm	36 mm	48 mm
UCFC-212	60 mm	195 mm	160 mm	17 mm	36 mm	48 mm
UCFC-212-38	2 3/8 in	195 mm	160 mm	17 mm	36 mm	48 mm
UCFC-212-39	2 7/16 in	195 mm	160 mm	17 mm	36 mm	48 mm
UCFC-213-40	2 1/2 in	205 mm	170 mm	16 mm	36 mm	50 mm
UCFC-213	65 mm	205 mm	170 mm	16 mm	36 mm	50 mm
UCFC-213-43	2 11/16 in	205 mm	170 mm	16 mm	36 mm	50 mm
UCFC-214-44	2 3/4 in	215 mm	177 mm	17 mm	40 mm	54 mm
UCFC-214	70 mm	215 mm	177 mm	17 mm	40 mm	54 mm
UCFC-215-44	2 3/4 in	220 mm	184 mm	18 mm	40 mm	56 mm
UCFC-215-47	2 15/16 in	220 mm	184 mm	18 mm	40 mm	56 mm
UCFC-215	75 mm	220 mm	184 mm	18 mm	40 mm	56 mm
UCFC-215-48	3 in	220 mm	184 mm	18 mm	40 mm	56 mm
UCFC-216	80 mm	240 mm	200 mm	18 mm	42 mm	58 mm
UCFC-216-52	3 1/4 in	240 mm	200 mm	18 mm	42 mm	58 mm
UCFC-217-52	3 1/4 in	250 mm	208 mm	18 mm	45 mm	63 mm
UCFC-217	85 mm	250 mm	208 mm	18 mm	45 mm	63 mm
UCFC-218-56	3 1/2 in	265 mm	220 mm	22 mm	50 mm	68 mm
UCFC-218	90 mm	265 mm	220 mm	22 mm	50 mm	68 mm

It belongs to the deep groove ball bearing, inside the rolling body for the steel ball
