PRODUCT DETAILS

Keywords: Shandong Guanxian Monten Bearing Co., Ltd.

Material: Housing from greycast iron.
Rolling bearing from bearing steel.
With 2 mounting holes.
The rolling bearing can be swiveled when mounting to compensate shaft misalignement.
The shaft will get fastened with 2 setscrews. Lubricated for life at normal operating conditions. Re-lubricating ispossible.
Delivery with grease nipple.

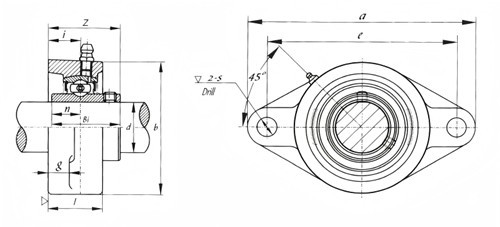

Bearing Unit No.	Shaft Dia(mm)		Dimensions(mm)										Bolt Used		Bearing No.	Housing No.	Weight(kg)
Bearing Unit No.	in	mm	a	e	i	g	l	s	b	z	Bi	n	mm	in	Bearing No.	Housing No.	Weight(kg)
UCFL201		12	113	90	15	11	25.5	12	60	33.3	31	12.7	M10	2025-3-8	UCFL201	FL201	0.44
UCFL201-8	1/2	12	113	90	15	11	25.5	12	60	33.3	31	12.7	M10	2025-3-8	UCFL201-8	FL201	0.44
UCFL202		15	113	90	15	11	25.5	12	60	33.3	31	12.7	M10	2025-3-8	UCFL202	FL202	0.42
UCFL202-10	5/8	15	113	90	15	11	25.5	12	60	33.3	31	12.7	M10	2025-3-8	UCFL202-10	FL202	0.42
UCFL203		17	113	90	15	11	25.5	12	60	33.3	31	12.7	M10	2025-3-8	UCFL203	FL203	0.41
UCFL203-11	11/16	17	113	90	15	11	25.5	12	60	33.3	31	12.7	M10	2025-3-8	UCFL203-11	FL203	0.41
UCFL204		20	113	90	15	11	25.5	12	60	33.3	31	12.7	M10	2025-3-8	UCFL204	FL204	0.39
UCFL204-12	3/4	20	113	90	15	11	25.5	12	60	33.3	31	12.7	M10	2025-3-8	UCFL204-12	FL204	0.39
UCFL205		25	130	99	16	13	27	16	68	35.7	34.1	14.3	M14	2025-1-2	UCFL205	FL205	0.57
UCFL205-14	7/8	25	130	99	16	13	27	16	68	35.7	34.1	14.3	M14	2025-1-2	UCFL205-14	FL205	0.57
UCFL205-15	15/16	25	130	99	16	13	27	16	68	35.7	34.1	14.3	M14	2025-1-2	UCFL205-15	FL205	0.57
UCFL205-16	1	25	130	99	16	13	27	16	68	35.7	34.1	14.3	M14	2025-1-2	UCFL205-16	FL205	0.57
UCFL206		30	148	117	18	13	31	16	80	40.2	38.1	15.9	M14	2025-1-2	UCFL206	FL206	0.76
UCFL206-18	1 1/8	30	148	117	18	13	31	16	80	40.2	38.1	15.9	M14	2025-1-2	UCFL206-18	FL206	0.76
UCFL206-19	1 3/16	30	148	117	18	13	31	16	80	40.2	38.1	15.9	M14	2025-1-2	UCFL206-19	FL206	0.76
UCFL206-20	1 1/4	30	148	117	18	13	31	16	80	40.2	38.1	15.9	M14	2025-1-2	UCFL206-20	FL206	0.76
UCFL207		35	161	130	19	14	34	16	90	44.4	42.9	17.5	M14	2025-1-2	UCFL207	FL207	1.05
UCFL207-20	1 1/4	35	161	130	19	14	34	16	90	44.4	42.9	17.5	M14	2025-1-2	UCFL207-20	FL207	1.05
UCFL207-21	1 5/16	35	161	130	19	14	34	16	90	44.4	42.9	17.5	M14	2025-1-2	UCFL207-21	FL207	1.05
UCFL207-22	1 3/8	35	161	130	19	14	34	16	90	44.4	42.9	17.5	M14	2025-1-2	UCFL207-22	FL207	1.05
UCFL207-23	1 7/16	35	161	130	19	14	34	16	90	44.4	42.9	17.5	M14	2025-1-2	UCFL207-23	FL207	1.05
UCFL208		40	175	144	21	14	36	16	100	51.2	49.2	19	M14	2025-1-2	UCFL208	FL208	1.34
UCFL208-24	1/2	40	175	144	21	14	36	16	100	51.2	49.2	19	M14	2025-1-2	UCFL208-24	FL208	1.34
UCFL208-25	1 9/16	40	175	144	21	14	36	16	100	51.2	49.2	19	M14	2025-1-2	UCFL208-25	FL208	1.34
UCFL209		45	188	148	22	15	38	19	108	52.2	49.2	19	M16	2025-5-8	UCFL209	FL209	1.7
UCFL209-26	1 5/8	45	188	148	22	15	38	19	108	52.2	49.2	19	M16	2025-5-8	UCFL209-26	FL209	1.7
UCFL209-27	1 11/16	45	188	148	22	15	38	19	108	52.2	49.2	19	M16	2025-5-8	UCFL209-27	FL209	1.7
UCFL209-28	1 3/4	45	188	148	22	15	38	19	108	52.2	49.2	19	M16	2025-5-8	UCFL209-28	FL209	1.7
UCFL210		50	197	157	22	15	40	19	115	54.6	51.6	19	M16	2025-5-8	UCFL210	FL210	1.92
UCFL210-30	1 7/8	50	197	157	22	15	40	19	115	54.6	51.6	19	M16	2025-5-8	UCFL210-30	FL210	1.92
UCFL210-31	1 15/16	50	197	157	22	15	40	19	115	54.6	51.6	19	M16	2025-5-8	UCFL210-31	FL210	1.92
UCFL210-32	2	50	197	157	22	15	40	19	115	54.6	51.6	19	M16	2025-5-8	UCFL210-32	FL210	1.92
UCFL211		55	224	184	25	18	43	19	130	58.4	55.6	22.2	M16	2025-5-8	UCFL211	FL211	2.73
UCFL211-32	2	55	224	184	25	18	43	19	130	58.4	55.6	22.2	M16	2025-5-8	UCFL211-32	FL211	2.73
UCFL211-34	2 1/8	55	224	184	25	18	43	19	130	58.4	55.6	22.2	M16	2025-5-8	UCFL211-34	FL211	2.73
UCFL211-35	2 3/16	55	224	184	25	18	43	19	130	58.4	55.6	22.2	M16	2025-5-8	UCFL211-35	FL211	2.73
UCFL212		60	250	202	29	18	48	23	140	68.7	65.1	25.4	M20	2025-3-4	UCFL212	FL212	3.56
UCFL212-36	2 1/4	60	250	202	29	18	48	23	140	68.7	65.1	25.4	M20	2025-3-4	UCFL212-36	FL212	3.56
UCFL212-38	2 3/8	60	250	202	29	18	48	23	140	68.7	65.1	25.4	M20	2025-3-4	UCFL212-38	FL212	3.56
UCFL212-39	2 7/16	60	250	202	29	18	48	23	140	68.7	65.1	25.4	M20	2025-3-4	UCFL212-39	FL212	3.56
UCFL213		65	258	210	30	20	50	23	155	69.7	65.1	25.4	M20	2025-3-4	UCFL213	FL213	4.37
UCFL213-40	2 1/2	65	258	210	30	20	50	23	155	69.7	65.1	25.4	M20	2025-3-4	UCFL213-40	FL213	4.37
UCFL214		70	265	216	31	20	54	23	160	75.4	74.6	30.2	M20	2025-3-4	UCFL214	FL214	4.95
UCFL214-44	2 3/4	70	265	216	31	20	54	23	160	75.4	74.6	30.2	M20	2025-3-4	UCFL214-44	FL214	4.95
UCFL215		75	275	225	34	20	56	23	165	78.5	77.8	33.3	M20	2025-3-4	UCFL215	FL215	5.18
UCFL215-48	3	75	275	225	34	20	56	23	165	78.5	77.8	33.3	M20	2025-3-4	UCFL215-48	FL215	5.18
UCFL216		80	290	233	34	20	58	25	180	83.3	82.6	33.3	M20	2025-3-4	UCFL216	FL216	6.36
UCFL216-50	3 1/8	80	290	233	34	20	58	25	180	83.3	82.6	33.3	M20	2025-3-4	UCFL216-50	FL216	6.36
UCFL217		85	305	248	36	22	63	25	190	87.6	85.7	34.1	M20	2025-3-4	UCFL217	FL217	7.68
UCFL217-52	3 1/4	85	305	248	36	22	63	25	190	87.6	85.7	34.1	M20	2025-3-4	UCFL217-52	FL217	7.68
UCFL218		90	320	265	40	23	68	25	205	96.3	96	39.7	M20	2025-3-4	UCFL218	FL218	9.54
UCFL218-56	3 1/2	90	320	265	40	23	68	25	205	96.3	96	39.7	M20	2025-3-4	UCFL218-56	FL218	9.54

It belongs to the deep groove ball bearing, inside the rolling body for the steel ball

QUALITY DETECTION

FACTORY WORKSHOP

factory

APPLICATION FIELD

FAQ

Once the products received by customer were found not comply with the products or contract demands, what will you do?

A: We will compensate the customer for all the loss without any hesitation.

Do you provide samples Is it free or extra?

A: Yes, we could offer free samples.

What certifications do your products have?

A: We have ISO 9001, SGS, EWC and other certifications.

What kind of payment terms would you accept?

A: We always do T/T.30% T/T as deposit,70% T/T as balance.

What is the delivery time?

A: 10-15 days

What is your MOQ?

A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
