UCF Series pillow block bearing

It belongs to the deep groove ball bearing, inside the rolling body for the steel ball

Classification :

Bearing Units

UCF

WhatsApp : +8615314156859

E-mail : jack@odqbearing.com

PRODUCT DETAILS

Keywords: Shandong Guanxian Monten Bearing Co., Ltd.

suitable for applications requiring simple equipment and parts, such as agricultural machinery, transportation systems or construction machinery.

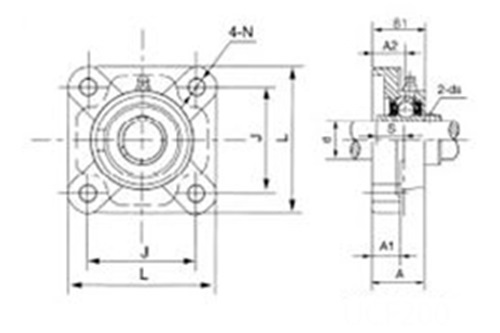

Item	Shaft Diameter d	Dimension L	Dimension J	Dimension A2	Dimension A1
UCF-201	12 mm	N/A	N/A	N/A	N/A
UCF-201-8	1/2 in	N/A	N/A	N/A	N/A
UCF-202-9	9/16 in	76 mm	54 mm	17 mm	11 mm
UCF-202	15 mm	76 mm	54 mm	17 mm	11 mm
UCF-202-10	5/8 in	76 mm	54 mm	17 mm	11 mm
UCF-203	17 mm	N/A	N/A	N/A	N/A
UCF-203-11	11/16 in	N/A	N/A	N/A	N/A
UCF-204-12	3/4 in	86 mm	63.5 mm	19 mm	11 mm
UCF-204	20 mm	86 mm	63.5 mm	19 mm	11 mm
UCF-205-14	7/8 in	95 mm	70 mm	19 mm	13 mm
UCF-205-15	15/16 in	95 mm	70 mm	19 mm	13 mm
UCF-205	25 mm	95 mm	70 mm	19 mm	13 mm
UCF-205-16	1 in	95 mm	70 mm	19 mm	13 mm
UCF-206-18	1 1/2 in	108 mm	82.5 mm	20 mm	13 mm
UCF-206	30 mm	108 mm	82.5 mm	20 mm	13 mm
UCF-206-19	1 3/16 in	108 mm	82.5 mm	20 mm	13 mm
UCF-206-20	1 1/4 in	108 mm	82.5 mm	20 mm	13 mm
UCF-207-20	1 1/4 in	117 mm	92 mm	21 mm	15 mm
UCF-207-21	1 5/16 in	117 mm	92 mm	21 mm	15 mm
UCF-207-22	1 3/8 in	117 mm	92 mm	21 mm	15 mm
UCF-207	35 mm	117 mm	92 mm	21 mm	15 mm
UCF-207-23	1 7/16 in	117 mm	92 mm	21 mm	15 mm
UCF-208-24	1 1/2 in	130 mm	101.5 mm	24 mm	15 mm
UCF-208-25	1 9/16 in	130 mm	101.5 mm	24 mm	15 mm
UCF-208	40 mm	130 mm	101.5 mm	24 mm	15 mm
UCF-209-26	1 5/8 in	137 mm	105 mm	24 mm	16 mm
UCF-209-27	1 11/16 in	137 mm	105 mm	24 mm	16 mm
UCF-209-28	1 3/4 in	137 mm	105 mm	24 mm	16 mm
UCF-209	45 mm	137 mm	105 mm	24 mm	16 mm
UCF-210-30	1 7/8 in	143 mm	111 mm	28 mm	16 mm
UCF-210-31	1 15/16 in	143 mm	111 mm	28 mm	16 mm
UCF-210	50 mm	143 mm	111 mm	28 mm	16 mm
UCF-210-32	2 in	143 mm	111 mm	28 mm	16 mm
UCF-211-32	2 in	162 mm	130 mm	31 mm	18 mm
UCF-211-34	2 1/8 in	162 mm	130 mm	31 mm	18 mm
UCF-211	55 mm	162 mm	130 mm	31 mm	18 mm
UCF-211-35	2 3/16 in	162 mm	130 mm	31 mm	18 mm
UCF-212-36	2 1/4 in	175 mm	143 mm	34 mm	18 mm
UCF-212-37	2 5/16 in	175 mm	143 mm	34 mm	18 mm
UCF-212	60 mm	175 mm	143 mm	34 mm	18 mm
UCF-212-38	2 3/8 in	175 mm	143 mm	34 mm	18 mm
UCF-212-39	2 7/16 in	175 mm	143 mm	34 mm	18 mm
UCF-213-40	2 1/2 in	187 mm	149.5 mm	34 mm	20 mm
UCF-213	65 mm	187 mm	149.5 mm	34 mm	20 mm
UCF-213-43	2 11/16 in	187 mm	149.5 mm	34 mm	20 mm
UCF-214-44	2 3/4 in	193 mm	152 mm	35 mm	24 mm
UCF-214	70 mm	193 mm	152 mm	35 mm	24 mm
UCF-215-44	2 3/4 in	200 mm	159 mm	35 mm	24 mm
UCF-215-47	2 15/16 in	200 mm	159 mm	35 mm	24 mm
UCF-215	75 mm	200 mm	159 mm	35 mm	24 mm
UCF-215-48	3 in	200 mm	159 mm	35 mm	24 mm
UCF-216	80 mm	208 mm	165 mm	35 mm	24 mm
UCF-216-52	3 1/4 in	208 mm	165 mm	35 mm	24 mm
UCF-217-52	3 1/4 in	220 mm	175 mm	36 mm	26 mm
UCF-217	85 mm	220 mm	175 mm	36 mm	26 mm
UCF-218-56	3 1/2 in	235 mm	187 mm	42 mm	26 mm
UCF-218	90 mm	235 mm	187 mm	42 mm	26 mm

Product Overview

Pillow block bearing , namely outer spherical bearings. It belongs to the deep groove ball bearing, inside the rolling body for the steel ball; Its outer ring surface is spherical, so it is called pillow block bearing.

Pillow block bearing with seats are usually with bolts, which are convenient to be fixed in the place where they should be fixed. There are also slider type and frame type, which are fixed by clamping, and overhang type and suspension type, which are usually with threads, which are convenient to be fixed in the rod end or suspended in the air.

At the same time, this kind of bearing is also designed with a certain centrality, easy to install, with a double structure of sealing device, can work in harsh environment. The bearing seat is generally molded by casting. Commonly used seat is vertical seat (P), square seat (F), boss square seat (FS), boss round seat (FC), diamond seat (FL), ring seat (C), slide block seat (T).

Bearing seal:

Compared with other ordinary bearings, outer spherical ball bearings have another feature: double sealing, because the use of outer spherical ball bearings is generally harsh environmental conditions, especially agricultural machinery bearings, and double sealing ensures that dust is not easy to enter the inside of the channel. In the last two years, some companies have developed three-lip sealed outer spherical bearings, which greatly strengthen the dustproof ability. The service life of the bearing is extended.

It belongs to the deep groove ball bearing, inside the rolling body for the steel ball

QUALITY DETECTION

FACTORY WORKSHOP

factory

APPLICATION FIELD

FAQ

Once the products received by customer were found not comply with the products or contract demands, what will you do?

A: We will compensate the customer for all the loss without any hesitation.

Do you provide samples Is it free or extra?

A: Yes, we could offer free samples.

What certifications do your products have?

A: We have ISO 9001, SGS, EWC and other certifications.

What kind of payment terms would you accept?

A: We always do T/T.30% T/T as deposit,70% T/T as balance.

What is the delivery time?

A: 10-15 days

What is your MOQ?

A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
