PRODUCT DETAILS

Keywords: Shandong Guanxian Monten Bearing Co., Ltd.

Agriculture, Automotive, Cement Industry, Crusher Industry, Heavy Machinery Equipments, Home Appliances, Mining Sector, Metal Industry, Fluid Machinery, Textile Industry

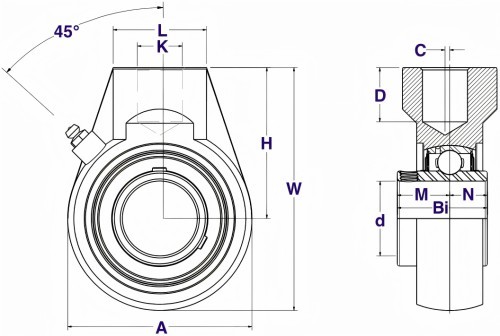

Bearing Unit No.	Shaft Dia(mm)		Dimensions（mm）									Bearing No.	Housing No.	Weight(kg)
Bearing Unit No.	in	mm	a	w	c	h	l	D	k	Bi	n	Bearing No.	Housing No.	Weight(kg)
UCHA201		12	64	96	0	64	40	19	G3/4	31	12.7	UC201	HA201	0.77
UCHA201-8	1/2	12	64	96	0	64	40	19	G3/4	31	12.7	UC201-8	HA201	0.77
UCHA202	5/8	15	64	96	0	64	40	19	G3/4	31	12.7	UC202	HA202	0.77
UCHA202-10		15	64	96	0	64	40	19	G3/4	31	12.7	UC202-10	HA202	0.77
UCHA203	11/16	17	64	96	0	64	40	19	G3/4	31	12.7	UC203	HA203	0.77
UCHA203-11		17	64	96	0	64	40	19	G3/4	31	12.7	UC203-11	HA203	0.77
UCHA204-12	3/4	20	64	96	0	64	40	19	G3/4	31	12.7	UC204-12	HA204	0.77
UCHA204		20	64	96	0	64	40	19	G3/4	31	12.7	UC204	HA204	0.77
UCHA205-14	7/8	25	78	103	0	64	40	19	G3/4	34	14.3	UC205-14	HA205	0.87
UCHA205-15		25	78	103	0	64	40	19	G3/4	34	14.3	UC205-15	HA205	0.87
UCHA205	15/16	25	78	103	0	64	40	19	G3/4	34	14.3	UC205	HA205	0.87
UCHA205-16	1	25	78	103	0	64	40	19	G3/4	34	14.3	UC205-16	HA205	0.87
UCHA206-18	1 1/8	30	78	103	0	64	40	19	G3/4	38.1	15.9	UC206-18	HA206	0.83
UCHA206		30	78	103	0	64	40	19	G3/4	38.1	15.9	UC206	HA206	0.83
UCHA206-19	1 3/16	30	78	103	0	64	40	19	G3/4	38.1	15.9	UC206-19	HA206	0.83
UCHA206-20	1 1/4	30	78	103	0	64	40	19	G3/4	38.1	15.9	UC206-20	HA206	0.83
UCHA207-20	1 1/4	35	92	116	0	70	40	19	G3/4	42.9	17.5	UC207-20	HA207	1.2
UCHA207-21	1 5/16	35	92	116	0	70	40	19	G3/4	42.9	17.5	UC207-21	HA207	1.2
UCHA207-22	1 3/8	35	92	116	0	70	40	19	G3/4	42.9	17.5	UC207-22	HA207	1.2
UCHA207		35	92	116	0	70	40	19	G3/4	42.9	17.5	UC207	HA207	1.2
UCHA207-23	1 3/16	35	92	116	0	70	40	19	G3/4	42.9	17.5	UC207-23	HA207	1.2
UCHA208-24	1 1/2	40	96	121	2	73	40	19	G3/4	49.2	19	UC208-24	HA208	1.3
UCHA208-25	1 9/16	40	96	121	2	73	40	19	G3/4	49.2	19	UC208-25	HA208	1.3
UCHA208		40	96	121	2	73	40	19	G3/4	49.2	19	UC208	HA208	1.3
UCHA209-26	1 5/8	45	108	136	5	82	48	21	G1	49.2	19	UC209-26	HA209	1.7
UCHA209-27	1 11/16	45	108	136	5	82	48	21	G1	49.2	19	UC209-27	HA209	1.7
UCHA209-28	1 3/4	45	108	136	5	82	48	21	G1	49.2	19	UC209-28	HA209	1.7
UCHA209		45	108	136	5	82	48	21	G1	49.2	19	UC209	HA209	1.7
UCHA210-30	1 7/8	50	118	142	5	83	48	21	G1	51.6	19	UC210-30	HA210	2.1
UCHA210-31	1 15/16	50	118	142	5	83	48	21	G1	51.6	19	UC210-31	HA210	2.1
UCHA210		50	118	142	5	83	48	21	G1	51.6	19	UC210	HA210	2.1
UCHA210-32	2	50	118	142	5	83	48	21	G1	51.6	19	UC210-32	HA210	2.1
UCHA211-32	2	55	126	150	7	95	60	25	G1 1/4	55.6	22.2	UC2I1-32	HA211	2.8
UCHA211-34	2 1/8	55	126	150	7	95	60	25	G1 1/4	55.6	22.2	UC211-34	HA211	2.8
UCHA211		55	126	150	7	95	60	25	G1 1/4	55.6	22.2	UC211	HA211	2.8
UCHA211-35	2 3/16	55	126	150	7	95	60	25	G1 1/4	55.6	22.2	UC211-35	HA211	2.8
UCHA212-36	2 1/4	60	142	173	9	102	60	28	G1 1/4	65. 1	25.4	UC212-36	HA212	3.9
UCHA212		60	142	173	9	102	60	28	G1 1/4	65. 1	25.4	UC212	HA212	3.9
UCHA212-38	2 3/8	60	142	173	9	102	60	28	G1 1/4	65. 1	25.4	UC212-38	HA212	3.9
UCHA212-39	2 7/16	60	142	173	9	102	60	28	G1 1/4	65. 1	25.4	UC212-39	HA212	3.9
UCHA213-40	2 1/2	65	166	200	9.5	117	70	32	G1 1/2	65.1	25.4	UC213-40	HA213	5.8
UCHA213		65	166	200	9.5	117	70	32	G1 1/2	65.1	25.4	UC213	HA213	5.8
UCHA214-44	2 3/4	70	166	200	9.5	117	70	32	G1 1/2	74.6	30.2	UC214-44	HA214	5.9
UCHA214		70	166	200	9.5	117	70	32	G1 1/2	74.6	30.2	UC214	HA214	5.9
UCHA215		75	166	200	9.5	117	70	32	G1 1/2	77.8	33.3	UC215	HA215	5.6
UCHA215-47	2 15/16	75	166	200	9.5	117	70	32	G1 1/2	77.8	33.3	UC215-47	HA215	5.6
UCHA215-48	3	75	166	200	9.5	117	70	32	G1 1/2	77.8	33.3	UC215-48	HA215	5.6

Product Introduction

These are Cast Iron Hanger Ball Bearing Units having set screw locking. It's one kind of pedestal bearing, which is also called hanger bearing, which is used to hang or support shaft in mid parts. Plummer block bearing also known as Pedestal Bearing or bearing housing, is a pedestal used to provide support for a rotating shaft with the help of compatible bearings & various accessories. Housing material for a pillow block is typically made of cast iron or cast steel.

It belongs to the deep groove ball bearing, inside the rolling body for the steel ball

QUALITY DETECTION

FACTORY WORKSHOP

factory

APPLICATION FIELD

FAQ

Once the products received by customer were found not comply with the products or contract demands, what will you do?

A: We will compensate the customer for all the loss without any hesitation.

Do you provide samples Is it free or extra?

A: Yes, we could offer free samples.

What certifications do your products have?

A: We have ISO 9001, SGS, EWC and other certifications.

What kind of payment terms would you accept?

A: We always do T/T.30% T/T as deposit,70% T/T as balance.

What is the delivery time?

A: 10-15 days

What is your MOQ?

A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
