UCPH Series Pillow Block Ball Bearings

CPH are Pillow Block Housings made of cast iron for Raise Shaft center with two slotted holes for fixing and are Relubricatable.

Classification :

Bearing Units

UCPH

WhatsApp : +8615314156859

E-mail : jack@odqbearing.com

PRODUCT DETAILS

Keywords: Shandong Guanxian Monten Bearing Co., Ltd.

Agriculture, Automotive, Cement Industry, Crusher Industry, Heavy Machinery Equipments, Home Appliances, Mining Sector, Metal Industry, Fluid Machinery, Textile Industry

Bearing Model	Insert No.	Housing No.	Bolt Size	Shaft Dia
				Shaft Dia
				d(in)	d(mm)
UCPH201	UC201	PA204	M10		12
UCPH201-8	UC201-8	PA204	M10	1/2
UCPH202	UC202	PA204	M10		15
UCPH202-9	UC202-9	PA204	M10	9/16
UCPH202-10	UC202-10	PA204	M10	5/8
UCPH203	UC203	PH204	M10		17
UCPH203-11	UC203-11	PH204	M10	11/16
UCPH204	UC204	PH204	M10		20
UCPH204-12	UC204-12	PH204	M10	3/4
UCPH205	UC205	PH205	M10		25
UCPH205-14	UC205-14	PH205	M10	7/8
UCPH205-15	UC205-15	PH205	M10	15/16
UCPH205-16	UC205-16	PH205	M10	1
UCPH206	UC206	PH206	M14		30
UCPH206-17	UC206-17	PH206	M14	1-1/16
UCPH206-18	UC206-18	PH206	M14	1-1/8
UCPH206-19	UC206-19	PH206	M14	1-3/16
UCPH206-20	UC206-20	PH206	M14	1-1/4
UCPH207	UC207	PH207	M14		35
UCPH207-20	UC207-20	PH207	M14	1-1/4
UCPH207-21	UC207-21	PH207	M14	1-5/16
UCPH207-22	UC207-22	PH207	M14	1-3/8
UCPH207-23	207-23	PH207	M14	1-7/16
UCPH208	UC208	PH208	M14		40
UCPH208-24	UC208-24	PH208	M14	1-1/2
UCPH208-25	UC208-25	PH208	M14	1-9/16
UCPH209	UC209	PH209	M14		45
UCPH209-26	UC209-26	PH209	M14	1-5/8
UCPH209-27	UC209-27	PH209	M14	1-11/16
UCPH209-28	UC209-28	PH209	M14	1-3/4
UCPH210	UC210	PH210	M16		50
UCPH210-30	UC210-30	PH210	M16	1-7/8
UCPH210-31	UC210-31	PH210	M16	1-15/16
UCPH210-32	UC210-32	PH210	M16	2
UCPH211	UC211	PH211	M16		55
UCPH211-32	UC211-32	PH211	M16	2
UCPH211-34	UC212-34	PH211	M16	2-3/16
UCPH211-35	UC211-35	PH211	M16	2-3/16
UCPH212	UC212	PH212	M16		60
UCPH212-36	UC212-36	PH212	M16	2-1/4
UCPH212-38	UC212-38	PH212	M16	2-3/8
UCPH212-39	UC212-39	PH212	M16	2-7/16

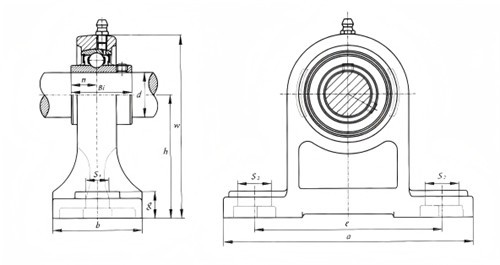

Dimensions(mm)										Weight(Kg)
H	L	J	A	N	N1	H1	Ho	B	s
H	L	J	A	N	N1	H1	Ho	B	s
70	127	95	40	13	19	15	101	31	12.7	0.96
70	127	95	40	13	19	15	101	31	12.7	0.96
70	127	95	40	13	19	15	101	31	12.7	0.96
70	127	95	40	13	19	15	101	31	12.7	0.96
70	127	95	40	13	19	15	101	31	12.7	0.96
70	127	95	40	13	19	15	101	31	12.7	0.96
70	127	95	40	13	19	15	101	31	12.7	0.96
70	127	95	40	13	19	15	101	31	12.7	0.96
70	127	95	40	13	19	15	101	31	12.7	0.96
80	140	105	50	13	19	16	114	34.1	14.3	1.2
80	140	105	50	13	19	16	114	34.1	14.3	1.2
80	140	105	50	13	19	16	114	34.1	14.3	1.2
80	140	105	50	13	19	16	114	34.1	14.3	1.2
90	165	121	50	17	21	18	130	38.1	15.9	1.6
90	165	121	50	17	21	18	130	38.1	15.9	1.6
90	165	121	50	17	21	18	130	38.1	15.9	1.6
90	165	121	50	17	21	18	130	38.1	15.9	1.6
90	165	121	50	17	21	18	130	38.1	15.9	1.6
95	167	127	60	17	21	19	140	42.9	17.5	2.1
95	167	127	60	17	21	19	140	42.9	17.5	2.1
95	167	127	60	17	21	19	140	42.9	17.5	2.1
95	167	127	60	17	21	19	140	42.9	17.5	2.1
95	167	127	60	17	21	19	140	42.9	17.5	2.1
100	178	137	70	17	21	20	150	49.2	19	2.7
100	178	137	70	17	21	20	150	49.2	19	2.7
100	178	137	70	17	21	20	150	49.2	19	2.7
105	190	146	70	17	21	20	158	49.2	19	3.1
105	190	146	70	17	21	20	158	49.2	19	3.1
105	190	146	70	17	21	20	158	49.2	19	3.1
105	190	146	70	17	21	20	158	49.2	19	3.1
110	206	159	70	20	23	22	165	51.6	19	3.5
110	206	159	70	20	23	22	165	51.6	19	3.5
110	206	159	70	20	23	22	165	51.6	19	3.5
110	206	159	70	20	23	22	165	51.6	19	3.5
120	219	171	75	20	23	23	181	55.6	22.2	4.07
120	219	171	75	20	23	23	181	55.6	22.2	4.07
120	219	171	75	20	23	23	181	55.6	22.2	4.07
120	219	171	75	20	23	23	181	55.6	22.2	4.07
130	235	186	85	20	23	24	197	65.1	25.4	6.31
130	235	186	85	20	23	24	197	65.1	25.4	6.31
130	235	186	85	20	23	24	197	65.1	25.4	6.31
130	235	186	85	20	23	24	197	65.1	25.4	6.31

Product Overview

UCPH are Pillow Block Housings made of cast iron for Raise Shaft center with two slotted holes for fixing and are Relubricatable. UCPH is a pedestal pillow block unit with an exceptionally high mounting base. It is ideal for applications where a shouldered shaft could create interference with the mounting surface when using a standard pillow block unit. Bearing unit UCPH type (Pillow block bearing units) provides stability and self-alignment for many different applications. Adjustment of a misaligned shaft can occur in any direction and allows centering and alignment without distorting seals.

It belongs to the deep groove ball bearing, inside the rolling body for the steel ball

QUALITY DETECTION

FACTORY WORKSHOP

factory

APPLICATION FIELD

FAQ

Once the products received by customer were found not comply with the products or contract demands, what will you do?

A: We will compensate the customer for all the loss without any hesitation.

Do you provide samples Is it free or extra?

A: Yes, we could offer free samples.

What certifications do your products have?

A: We have ISO 9001, SGS, EWC and other certifications.

What kind of payment terms would you accept?

A: We always do T/T.30% T/T as deposit,70% T/T as balance.

What is the delivery time?

A: 10-15 days

What is your MOQ?

A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
