UCT Series pillow block bearing

UCT housed bearings consist of a combination of bearings and housings with guideway grooves

Classification :

Bearing Units

UCT

WhatsApp : +8615314156859

E-mail : jack@odqbearing.com

PRODUCT DETAILS

Keywords: Shandong Guanxian Monten Bearing Co., Ltd.

Can be applied to: injection molding machine parts, textile equipment and devices, deep hole drilling machine, sanding machine, dehumidifier, sewage treatment equipment, variable frequency pumps, varnishing machine, pill making machine, cafeteria equipment, regeneration crusher, cutting machine, rolling guides, food sterilizing equipment, filler, electronic component molding machine, open water chiller, steel bar cutter, and other applications.

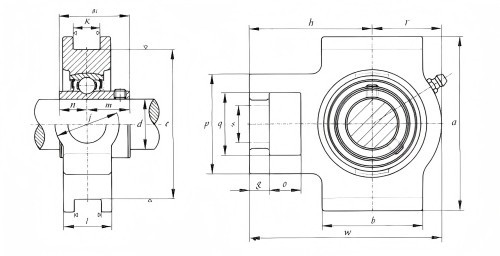

Bearing Unit No.	Shaft Dia	Dimensions（mm）															Bearing No.	Housing No.	Weight(kg)
Bearing Unit No.	in	o	g	p	q	s	b	k	e	a	w	j	l	h	Bi	n	Bearing No.	Housing No.	Weight(kg)
UCT201	12	16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	UC201	T204	0.75
UCT202	15	16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	UC202	T204	0.73
UCT203	17	16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	UC203	T204	0.72
UCT204	20	16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	UC204	T204	0.7
UCT205	25	16	10	51	32	19	51	12	76	89	97	32	24	62	34	14.3	UC205	T205	0.73
UCT206	30	16	10	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	UC206	T206	1.17
UCT207	35	16	13	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	UC207	T207	1.45
UCT208	40	19	16	83	49	29	83	16	102	114	144	49	33	88	49.2	19	UC208	T208	2.11
UCT209	45	19	16	83	49	29	83	16	102	117	144	49	35	87	49.2	19	UC209	T209	2.18
UCT210	50	19	16	83	49	29	86	16	102	117	149	49	37	90	51.6	19	UC210	T210	2.35
UCT211	55	25	19	102	64	35	95	22	130	146	171	64	38	106	55.6	22.2	UC211	T211	3. 56
UCT212	60	32	19	102	64	35	102	22	130	146	194	64	42	119	65.1	25.4	UC212	T212	4.23
UCT213	65	32	21	111	70	41	121	26	151	167	224	70	44	137	65.1	25.4	UC213	T213	6.04
UCT214	70	32	21	111	70	41	121	26	151	167	224	70	46	137	74.6	30.2	UC214	T214	6.35
UCT215	75	32	21	111	70	41	121	26	151	167	232	70	48	140	77.8	33.3	UC215	T215	6.6
UCT216	80	32	21	111	70	41	121	26	165	184	235	70	51	140	82.6	33.3	UC216	T216	7.24
UCT217	85	38	29	124	73	48	157	30	173	198	260	73	54	162	85.7	34.1	UC217	T217	10.33

Product Overview

UCT housed bearings are special bearings designed for applications where the distance between shafts needs to be adjusted, and are particularly suitable for applications where the shafts can be moved during operation.UCT housed bearings consist of a combination of bearings and housings with guideway grooves, with two slides above and below the housings, which allow them to move back and forth on a frame.

Features

Adjustable inter-axis distance: Since the bearing housing has a slide groove, it can be moved back and forth on the frame, so it is very suitable for occasions where the inter-axis distance needs to be adjusted.

It belongs to the deep groove ball bearing, inside the rolling body for the steel ball

QUALITY DETECTION

FACTORY WORKSHOP

factory

APPLICATION FIELD

FAQ

Once the products received by customer were found not comply with the products or contract demands, what will you do?

A: We will compensate the customer for all the loss without any hesitation.

Do you provide samples Is it free or extra?

A: Yes, we could offer free samples.

What certifications do your products have?

A: We have ISO 9001, SGS, EWC and other certifications.

What kind of payment terms would you accept?

A: We always do T/T.30% T/T as deposit,70% T/T as balance.

What is the delivery time?

A: 10-15 days

What is your MOQ?

A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
